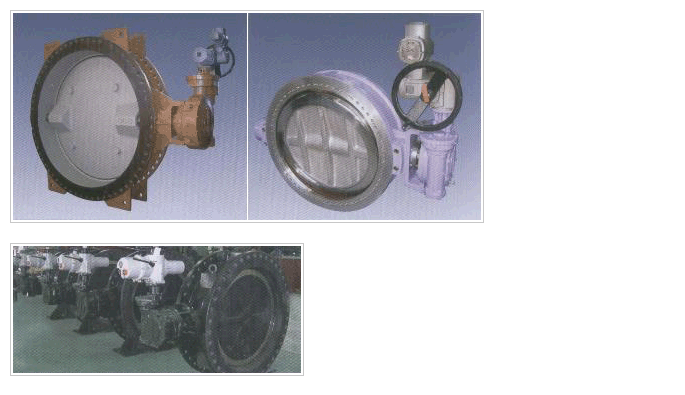

Water Works Butterfly Valve |
||||||
 |
||||||
 |
||||||
 |
||||||
| - Water works - Chemical Industry etc. - Power Plant - Air Conditioning - Sewage Plant - Shipbuilding Industry - Heating and Ventilation - Irrugation - Desalination Plant - Gas Plant |
||||||
 |
||||||
| - Size : DN100 to DN4000(4 inch ~ 160 inch) - Working Pressure : Up to 40 bar - Working Temperature : -20‘C ~ + 160‘C |
||||||
 |
||||||
| - BS4504 PN10, PN16, DIN25, DIN2501, PN10, PN25 - ANSI B 16.1 CL. 125LB & B16.5 CL 150LB - MSS SP 44 CL 150LB. 300LB - AWWA C 207 Class D & E - ISO 2531 PN10, PN16, PN25, KS/JIS 10K, 16K and 20K |
||||||
 |
||||||
| - Conform to BS5155, ISO 5752, AWWA C504, KS B 2333 | ||||||
 |
||||||
| - Body : Ductile Cast Iron, Cast Steel, Stainless Steel, Aluminium Bronze, Alloy steel - Disk : Ductile Cast Iron, Cast Steel, Stainless Steel, Aluminium Bronze, Alloy steel - Stem : Stainless Steel, Monel, Inconel - Seat : Rubber(NBR, NR, EPDM, FPM) |
||||||
 |
||||||
| - Gear, Motor, Air Cylinder, Hydraulic Cylinder. etc. | ||||||
