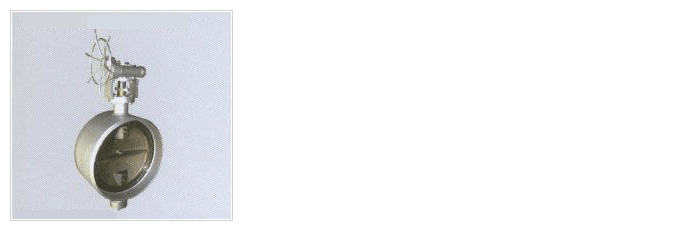

Butt Weld Butterfly Valve |
||||||
 |
||||||
 |
||||||
 |
||||||
| - Steam Line - Hot Water Line - District Heating Trunk Line - Power Plant - Steel Mill |
||||||
 |
||||||
| - Conform to ISO 5752, BS 5155, MSS SP67 and API 609 | ||||||
 |
||||||
| - Size : DN 200 to DN 1500 (2 inch to 60 inch) - Working Pressure : Up to 25 bar - Working Temperature : Max 560”ĘC |
||||||
 |
||||||
| - Butt Weld Type ANSI B 16.25/ KS D 3562 | ||||||
 |
||||||
| - Body : Fabricated Carbon Steel, Stainless Steel - Disk : Fabricated Carbon Steel, Stainless Steel - Stem : Stainless Steel - Seat : Stainless Steel, Inconel, Hard Faced. |
||||||
 |
||||||
| - Gear, Motor, Cylinder, etc. | ||||||
