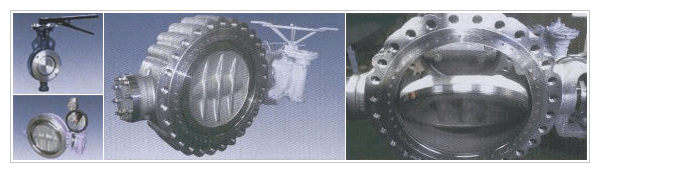

high performance butterfly valve |
||||||
 |
||||||
 |
||||||
 |
||||||
| - Crude Oil - Steam - Chemical and Petro-Chemical Plants - Textile Industry - Offshore Plant - Water and Others - Ethylene - Foundry - LPG - Marine tankers-Ship building - Petroleum Products - Food Plants - Sea Water - Fire safer Piping system - Sugar refining |
||||||
 |
||||||
| - Conform to BS5155, ISO 5752, MSS SP67 and API609 | ||||||
 |
||||||
| - Size : DN 50 to DN2400 (2 inch ~ 96 inch) - Working Pressure : Up to 25 bar - Working Temperature : -100‘C ~ + 450‘C |
||||||
 |
||||||
| - BS4504 PN10, PN16, PN25 and PN40 /DIN2501, PN10, PN16, PN25 and PN40 - ANSI B 16.5 CL. 150LB and 300LB / MSS SP44 CL 150LB and 300LB - ISO 2531 PN10, PN16, PN25 and PN40 / KS/JIS 10K, 16K and 20K - AWWA C207 Class D & E |
||||||
 |
||||||
| - Body : Ductile Cast Iron, Cast Steel, Stainless Steel, Aluminium Bronze, Alloy steel - Disk : Cast Steel, Stainless Steel, Aluminium Bronze, Alloy steel - Stem : Stainless Steel, Monel, Inconel - Seat : PTFE, RTFE |
||||||
 |
||||||
| - Gear, Motor, Air Cylinder, Hydraulic Cylinder. etc. | ||||||
