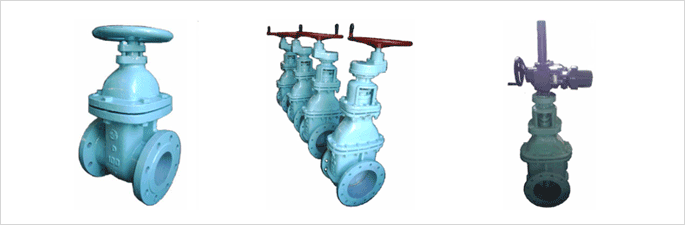

water work sluice valves |
 |
| |
Designed and manufactured in accordance with KS B 2332 (JIS2062, BS 5150, BS 5163) and AWWA C 500 with flanged end for use with service water. Also available the valves equipped with bearings to decrease the force required for operating the valves. Available in several models, operated manually, by motor, by head stocks, or cylinder(Hydraulic, Pneumatic). Authorized by Permit No. 98-0279 which grant use of K.S (Korea Industrial Standardization) mark on the butterfly valve products.
|
| |
 |
| |
| 1. Size |
| |
Vertical type 50mm~1500mm
Horizontal type 400mm~1500mm
※Other size are available on request. |
| 2. Working Pressure |
| |
Max. 10㎏/㎠ (16, 20㎏/㎠ are available on request.) |
| 3. Valve End |
| |
Flange(KS D 4309, ISO 15590)
※Other standards are available on request. |
| 4. Fluid |
| |
Water
|
| 5. Direction of Operating |
| |
Counter-clockwise to open |
| 6. Test Pressure |
| |
Leakage test 10㎏/㎠
Shell test 17.5㎏/㎠ (50mm~350mm)
14㎏/㎠ (400mm~1500mm) |
| 7. Main Material |
| |
Body Cast Iron (GC200)
Ductile Cast Iron (GCD450)
Disc Cast Iron (GC200)
Ductile Cast Iron (GCD450)
Stem Stainless Steel (STS304, STS403)
High Tensile Brass (C3771BE, C6782BE)
Seat Bronze Casting (BC6)
Stainless Steel (STS304)
※Other materials are available on request. |
| 8. Coating |
| |
Epoxy resin coating or Fusion epoxy powder coating |
|
| |
 |
| |
|
