Quick air vent valve are manufactured for flange type or screw
inlet type for water works service.
Designed to be able to inlet or outlet air quicker than general
air valve in supplying and draining water.
Researched and developed to be possible to perform effective
air outlet under water pressure |
| |
 |
| 1. Size |
| |
Flange type ..........80mm~200mm
Screw inlet type .........25mm |
| 2. Type of Fluid
|
| |
Service water,sea water |
| 3. Working pressure
|
| |
Max.16kg/㎠ |
| 4. Valve End
|
| |
Flange |
| 5. Main Material
|
| |
Body : Cast iron(GC 200),
Ductile Cast iron(GCD 450)
Cover : Ditto
Floating valve : Synthetic Plastics ,ABS Plastics
Float : FRP,Synthetic plastics |
| |
| ※The Other materials are arailable on request |
|
| |
 |
| |

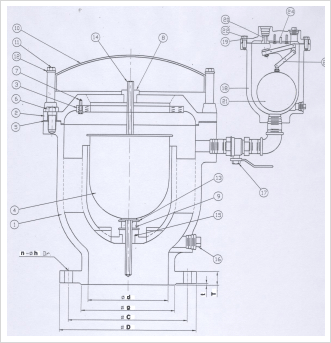

| Unit : mm |
| Model No. |
Size
(d) |
g
|
D |
C |
T x f
|
n-h |
| CAV-0100-00 |
100 |
153 |
220 |
180 |
25x3 |
8-19 |
| CAV-0150-00 |
150 |
209 |
285 |
240 |
26x3 |
8-23 |
| CAV-0200-00 |
200 |
264 |
340 |
295 |
27x3 |
8-23 |
| CAV-0250-00 |
250 |
319 |
395 |
350 |
29x3 |
12-23 |
| CAV-0300-00 |
300 |
367 |
445 |
400 |
31x4 |
12-23 |
| CAV-0400-00 |
400 |
477 |
565 |
515 |
34x4 |
16-28 |
| CAV-0500-00 |
500 |
582 |
670 |
620 |
36x4 |
20-28 |
|
| |
