motor driven sluice valves


	HOME > Products > Sluice Valves

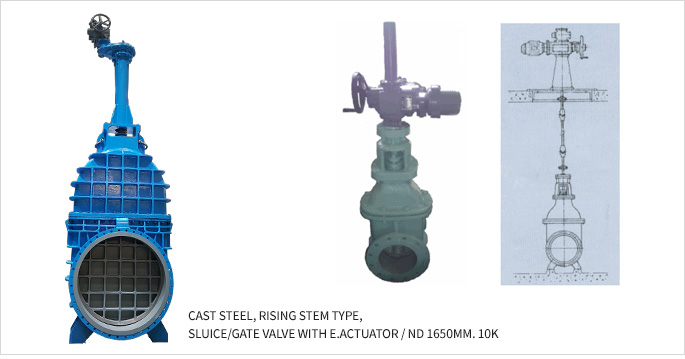

Electro drives with standard flanges are suitable for direct installation to our valves. The standard type includes a torque switch, a limit switch for both open, closed positions as well as an emergency actuator in form of a hand-wheel for manual operation and inter-lock switch for the safety device in manual operations. As special type, there are also "Explosion Proof" actuators available.

1. Size
	200mm~1500mm
2. Working Pressure
	Max. 10㎏/㎠ (16, 20㎏/㎠ are available on request.)
3. Valve End
	Flange(KS D 4309, ISO 15590) ※Other standards are available on request.
4. Fluid
	Water
5. Direction of Operating
	Counter-clockwise to open
6. Test Pressure
	Leakage test 10㎏/㎠ Shell test 17.5㎏/㎠ (50mm~350mm) 14㎏/㎠ (400mm~1500mm)
7. Main Material
	Body Cast Iron (GC200) Ductile Cast Iron (GCD450) Disc Cast Iron (GC200) Ductile Cast Iron (GCD450) Stem Stainless Steel (STS304, STS403) Chromium Molybdenum Steel (SCM440) Seat Bronze Casting (BC6) Stainless Steel (STS304) ※Other materials are available on request.
8. Coating
	Epoxy resin coating or Fusion epoxy powder coating
