| A disc-shaped sluice gate with outside-screw rising or non-rising stem,
Especially suitable for water intakes outlets and the like where fluid flows in the same direction,
Operated from a head stock ,hydraulic and oil pressure cylinder or electric motor. |
| |
 |
|
| |
1. Size |
| |
|
Nominal dia : 200mm~3000mm |
| |
2. Fluid |
| |
|
Service water, sewage, sea water etc. |
| |
3. Working Pressure |
| |
|
14psi(10mAq) |
| |
4. Main Material |
| |
|
*Body : Cast Iron (GC200)
Ductile Cast Iron (GCD450)
*Disc : Cast Iron (GC200)
Ductile Cast Iron (GCD450)
*Stem : Stainless Steel (STS304, STS403)
*Seat : Bronze Casting (BC6)
Stainless Steel (STS304) |
| |
”Ų The Other materials are available on request |

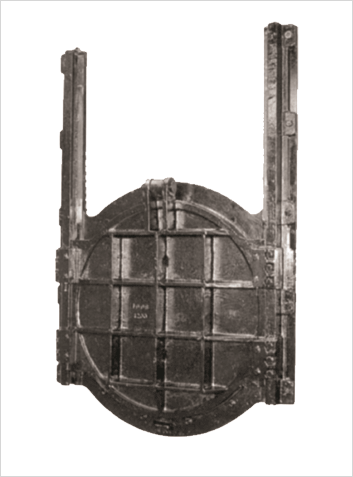

circular type sluice gate
|
 |
|
| |
| |
|
