| A large size square sluice gate with outside steam screw,
Controlled by a headstock, operated by handwheel, hydraulic, oil pressure cylinder or electric motor.
An extra large size version is available with duplex headstock |
| |
 |
|
| |
1. Size |
| |
|
Nominal size : 200mm~4,000mm |
| |
2. Fluid |
| |
|
Service water, sewage, sea water etc. |
| |
3. Working Pressure |
| |
|
14psi(10mAq) |
| |
4. Main Material |
| |
|
*Body : Cast iron (GC200)
Ductile Cast Iron (GCD450)
*Disc : Cast Iron (GC200)
Ductile Cast Iron (GCD450)
*Stem : Stainless Steel (STS304, STS403)
*Seat : Bronze Casting (BC6)
Stainless Steel (STS304) |
| |
¡Ø The Other materials are available on request |

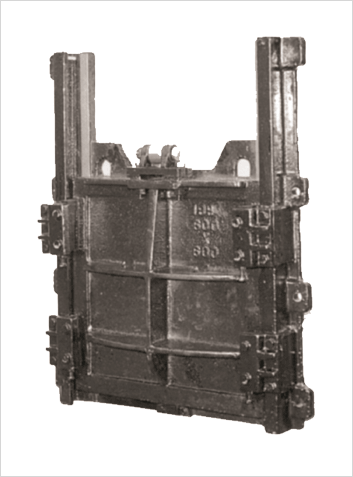

rectangular type sluice gate
|
 |
|
| |
|
